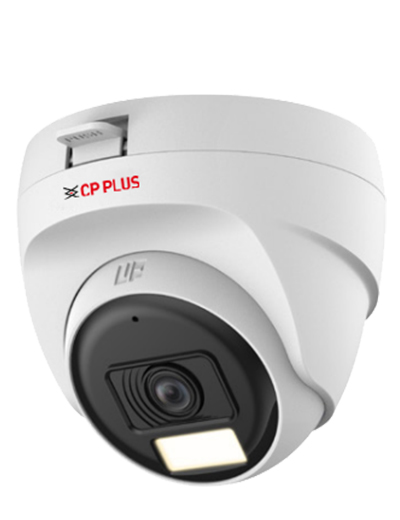

CAMERA CP PLUSE DOME HD C+A DC24PL3C-L-V2

Features	Specifications
Camera Type	2.4MP HD Dual Light Analog Dome Camera
Image Sensor	2.4MP PS CMOS Image Sensor
Maximum Resolution	1920 × 1080 (Full HD)
Lens	3.6mm Fixed Lens
Optional Lens	2.8mm
Audio	Built-in Microphone
Night Vision	30m Smart IR + 20m Warm Light
Dual Light Technology	Smart IR + Warm Light
Video Output	CVI / TVI / AHD / CVBS (4-in-1)
Frame Rate	Up to 25/30fps
Day & Night	Auto (ICR) / Color / B&W
Wide Dynamic Range	DWDR
Backlight Compensation	BLC / HLC
Noise Reduction	2D DNR
White Balance	Auto / Area White Balance
Gain Control	Auto / Manual (AGC)
Minimum Illumination	0.02 Lux (Color), 0.002 Lux (B/W), 0 Lux (IR ON)
Viewing Angle	H: 80° / V: 43° / D: 94°
Angle Adjustment	Pan: 0°–360°, Tilt: 0°–78°, Rotation: 0°–360°
Privacy Mask	Up to 8 Areas
Weather Protection	IP67 Weatherproof
Housing Material	Durable Plastic Dome
Power Supply	12V DC ±30%
Operating Temperature	-40°C to +60°C
Operating Humidity	Less than 95% RH
Installation	Indoor & Outdoor
DVR Compatibility	CVI, TVI, AHD & CVBS DVRs
