| Model |

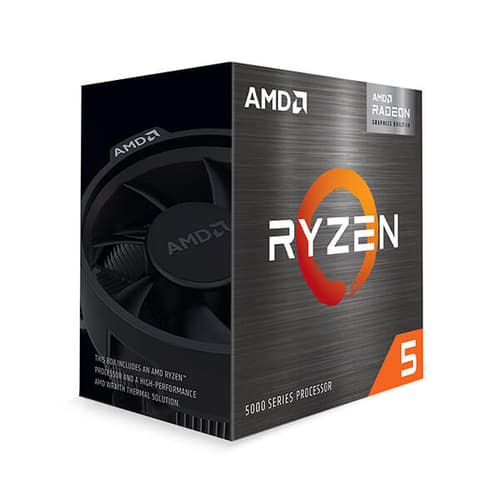

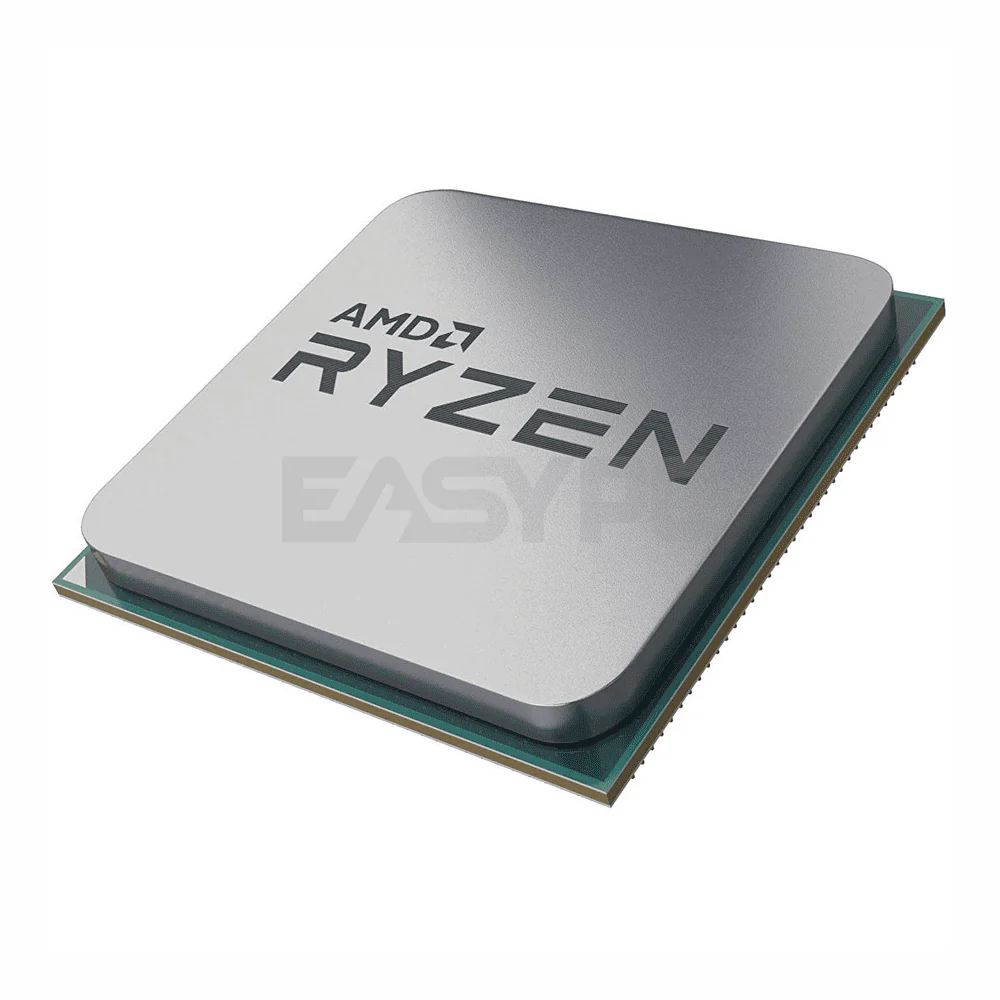

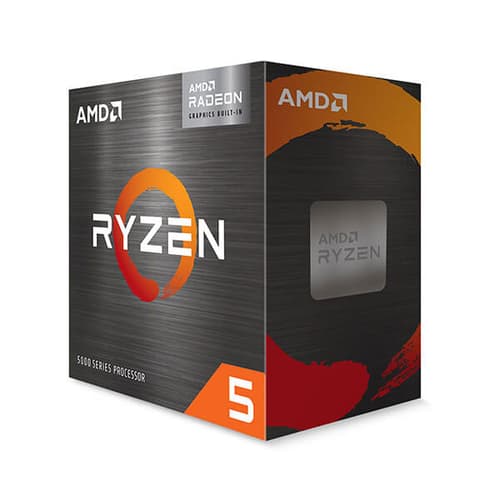

AMD Ryzen 5 5600GT |
| Platform |
Boxed Processor |
| Market Segment |
Mainstream Desktop |
| Product Family |
AMD Ryzen Processors |
| Product Line |
AMD Ryzen™ 5 5000 G-Series Desktop Processors with Radeon™ Graphics |
| Consumer Use |
Yes |
| Commercial Use |
No |
| Former Codename |
“Cezanne” |
| Architecture |
“Zen 3” |
| # of CPU Cores |
6 |
| Multithreading (SMT) |
Yes |
| # of Threads |
12 |
| Max. Boost Clock |
Up to 4.6GHz |
| Base Clock |
3.6GHz |
| L1 Cache |
384KB |
| L2 Cache |
3MB |
| L3 Cache |
16MB |
| Default TDP |
65W |
| AMD Configurable TDP (cTDP) |
45-65W |
| Processor Technology for CPU Cores |
TSMC 7nm FinFET |
| CPU Compute Die (CCD) Size |
180mm² |
| Package Die Count |
1 |
| Unlocked for Overclocking |
Yes |
| CPU Socket |
AM4 |
| Thermal Solution (PIB) |

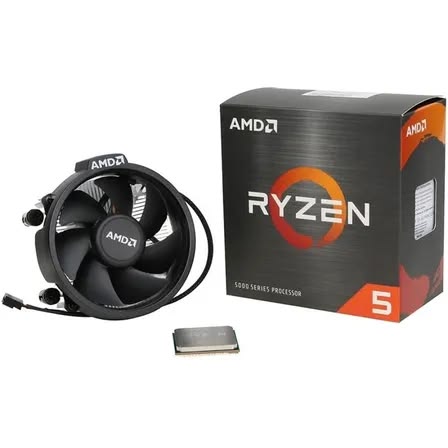

AMD Wraith Stealth |
| Thermal Solution (MPK) |
AMD Wraith Stealth |
| Max. Operating Temperature (Tjmax) |
95°C |
| OS Support |
Windows 11 (64-Bit), Windows 10 (64-Bit), RHEL x86 64-Bit, Ubuntu x86 64-Bit (may vary by manufacturer) |
| PCI Express® Version |
PCIe® 3.0 |
| NVMe Support |
Boot, RAID0, RAID1, RAID10 |
| System Memory Type |
DDR4 |
| Memory Channels |
2 |
| Max. Memory |
128GB |
| System Memory Subtype |
UDIMM |
| System Memory Specification |
Up to 3200MT/s |
| Max Memory Speed |
2x1R DDR4-3200 / 2x2R DDR4-3200 / 4x1R DDR4-2933 / 4x2R DDR4-2667 |
| Integrated Graphics |
Yes |
| Graphics Model |
Radeon Graphics |
| Graphics Core Count |
7 |
| Graphics Frequency |
1900 MHz |
| Warranty |
3 Years |
| Note |
Features, Price, Specifications are subject to change without notice. Images used for representation purpose only |
| Compatible Components |
Thermaltake SMPS, Arctic Liquid Freezer AIO Cooler |
