SMPS CM ELITE GOLD 1000W

Features	Specification
Product Name	ELITE GOLD 1000

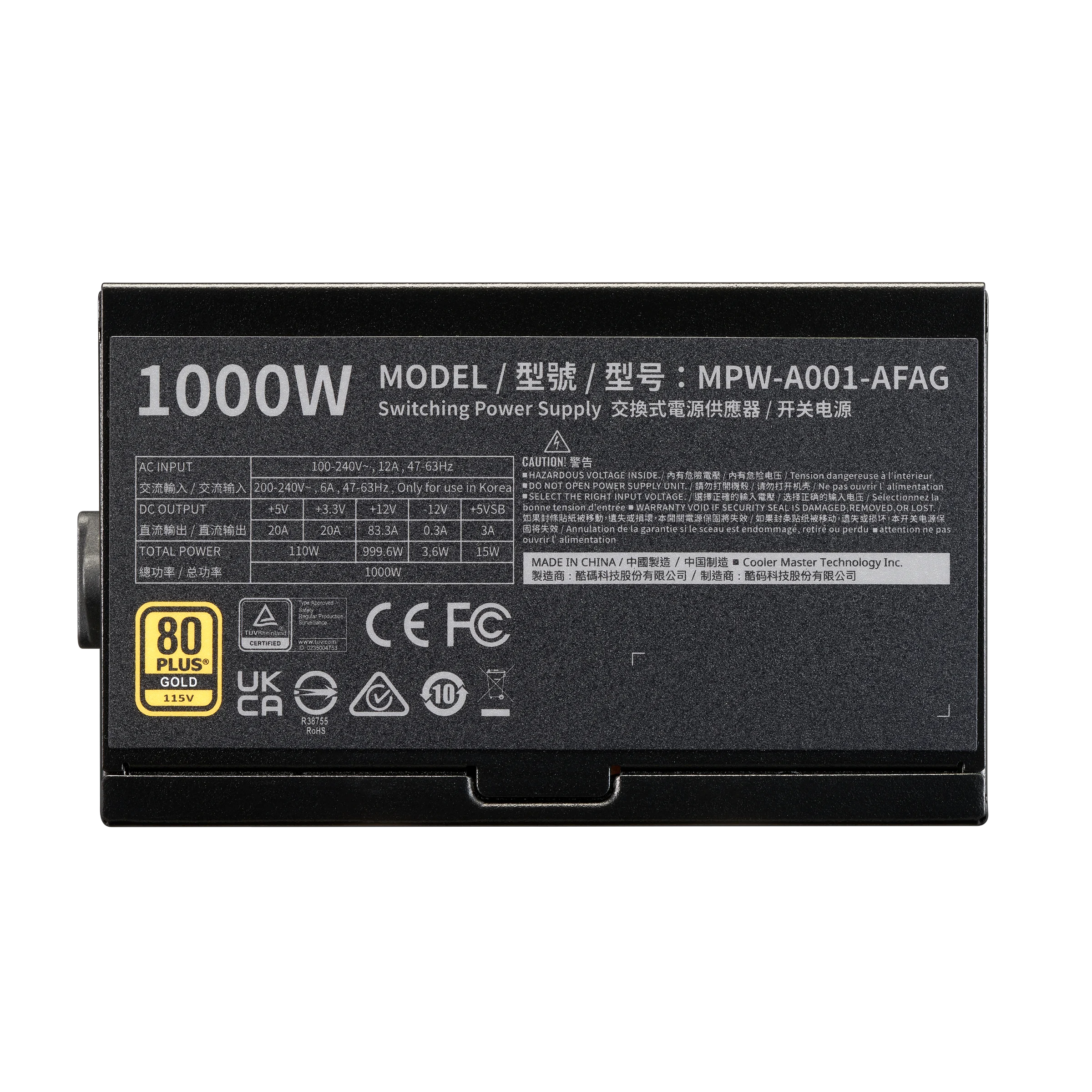

Model	MPW-A001-AFAG
Series	Elite Series
Form Factor	ATX
ATX Version	ATX 12V Ver. 3.1
Power Output	1000W
Modular Type	Fully Modular
PFC	Active PFC
Input Voltage	100–240V
Input Current	6 ~ 12A
Input Frequency	50–60Hz
Dimensions (L × W × H)	140 × 150 × 86 mm

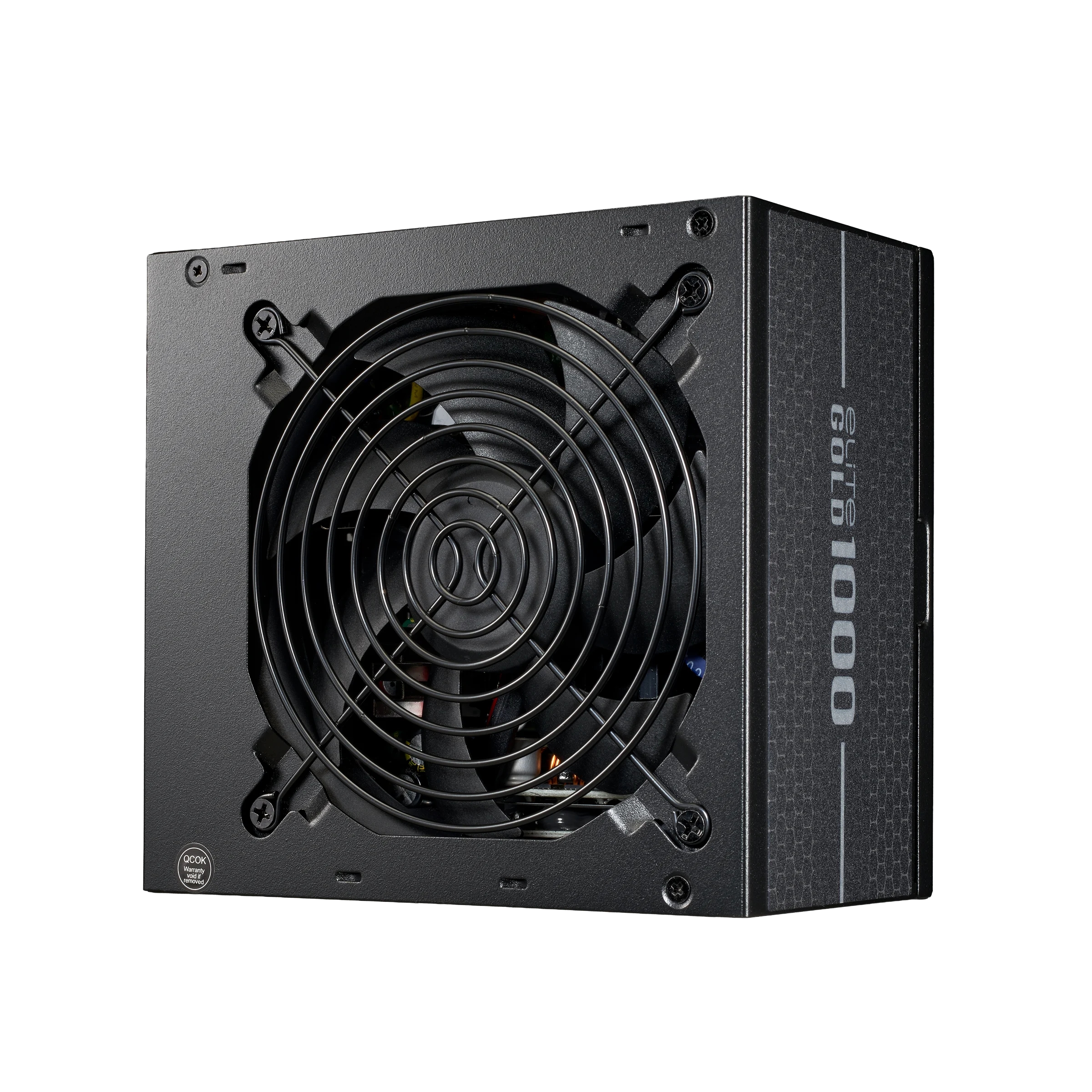

Fan Size	120mm
Fan Bearing	FDB (Fluid Dynamic Bearing)
Efficiency	≥90% @ Typical Load
80 PLUS Rating	80 PLUS Gold
80 Plus Efficiency	Gold
ErP 2014 Lot 3	Yes
Operating Temperature	0°C – 40°C
Power Good Signal	100 – 150 ms
Hold Up Time	≥16ms at 80% Load
MTBF	>100,000 Hours @ 25°C Ambient
Protections	UVP / OVP / OPP / OTP / SCP
Regulatory Certifications	cTUVus, CB, CE, FCC, BSMI, EAC, RCM, UKCA, RoHS2.0, REACH

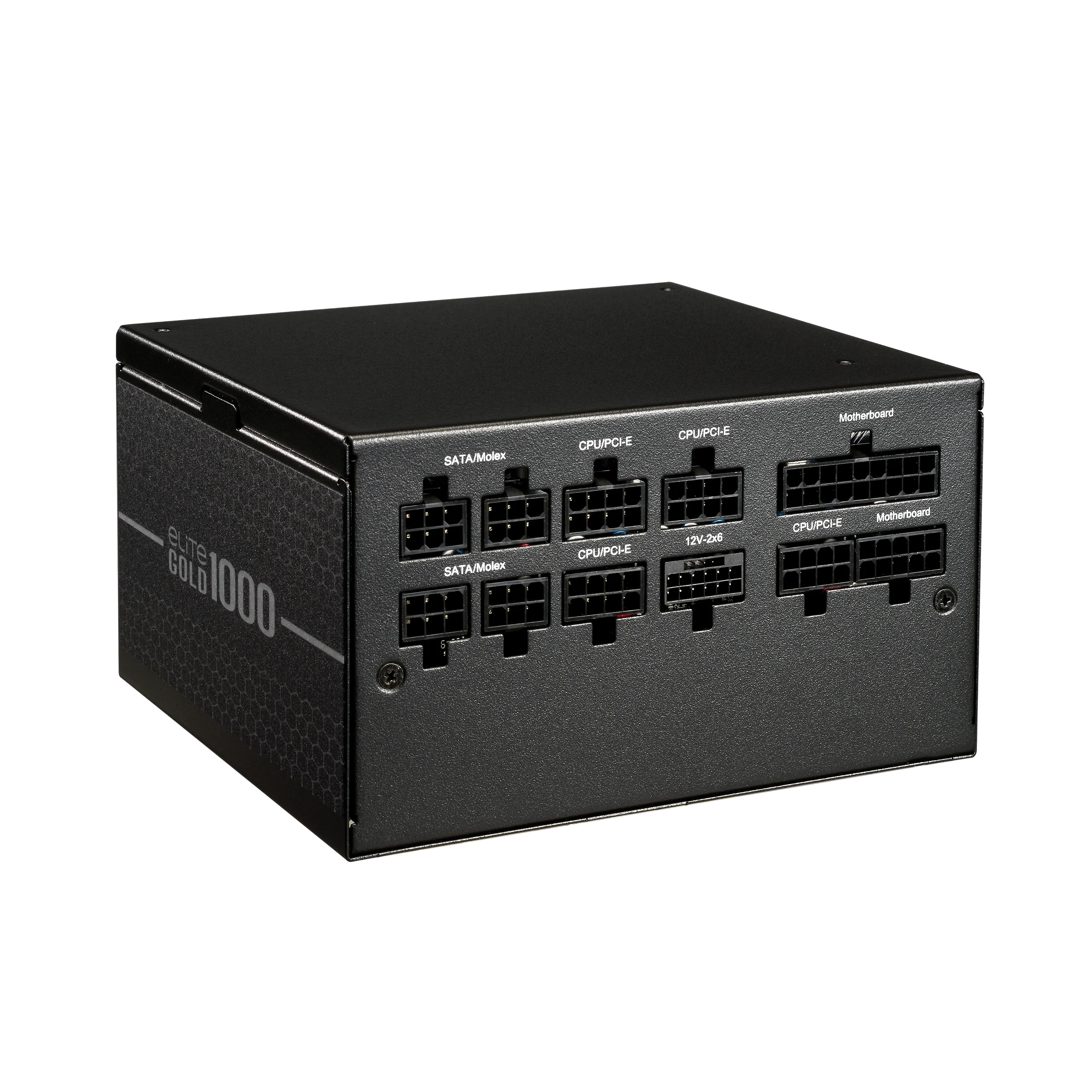

ATX 24 Pin Connectors	x1 (600mm)
EPS 4+4 Pin Connectors	x2 (700mm)
SATA Connectors	x9 = 3 (500+100+100mm)
Peripheral 4 Pin Connectors	x3 = 1 (500+100+100mm)
PCI-e 6+2 Pin Connectors	x6 = 3 (550+120mm)
12+4 Pin Connectors	x1 (600mm)
Warranty	10 Years
