SMPS COOLER MASTER MWE GOLD 1050W V2

Features	Specifications
Product Name	MWE Gold 1050
Model	MPE-A501-AFCAG
Series	MWE Gold Series
Category	Above 750W
Wattage	1050W
Form Factor	ATX
ATX Version	ATX 12V V2.52
Modular	Fully Modular
80 PLUS Rating	80 PLUS Gold
Efficiency	≥90% @ Typical Load
PFC Type	Active PFC
Input Voltage	100–240V
Input Current	13–6A
Input Frequency	47–63Hz
Operating Temperature	0–50°C
Hold Up Time	>20ms @ 100% Load
Power Good Signal	100–150 ms
MTBF	>100,000 Hours
ErP Compliance	ErP 2014 Lot 3

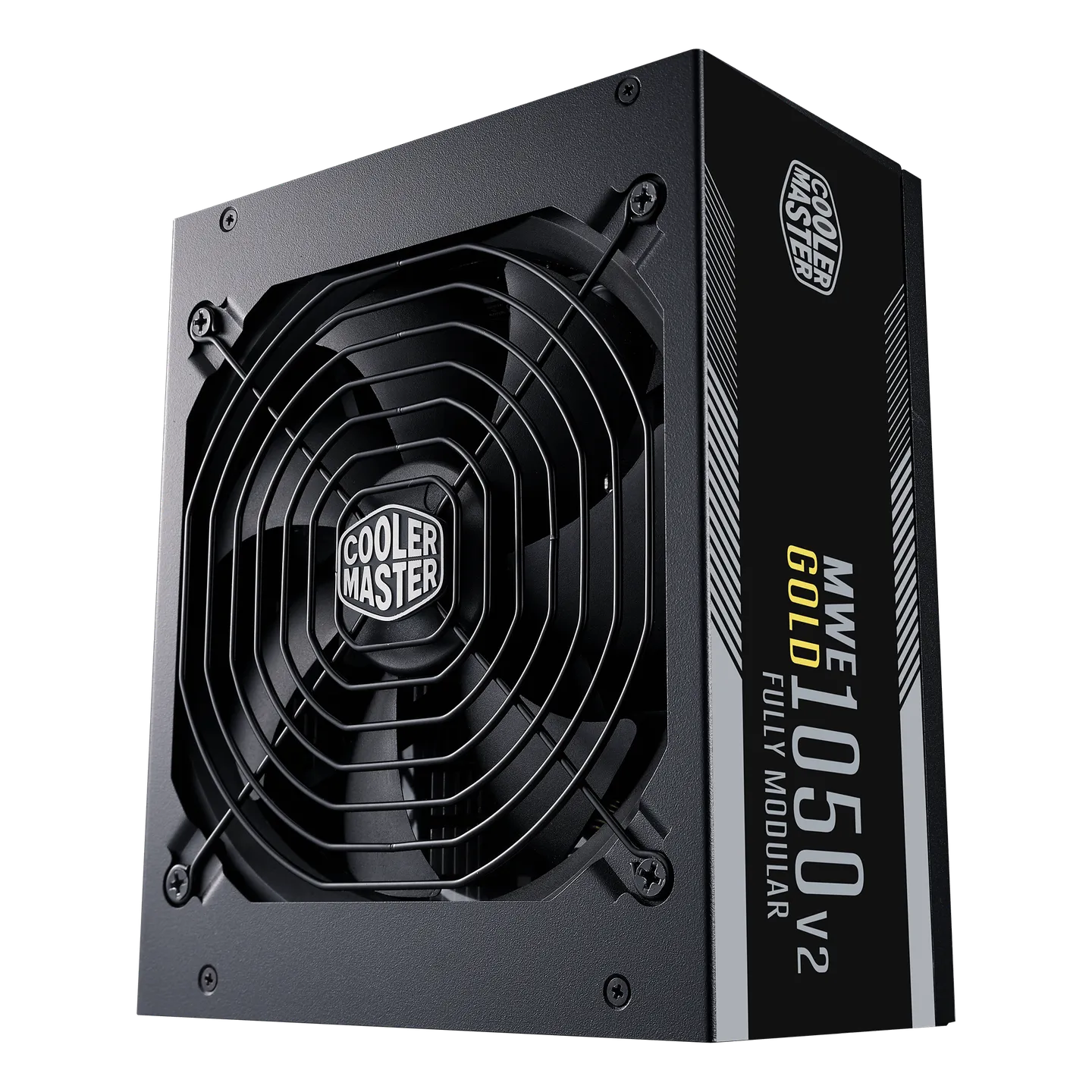

Fan Size	140mm
Fan Bearing	FDB (Fluid Dynamic Bearing)
Fan Speed	2200 RPM
Noise Level @ 20% Load	0 dBA
Noise Level @ 50% Load	14.9 dBA
Noise Level @ 100% Load	27.3 dBA

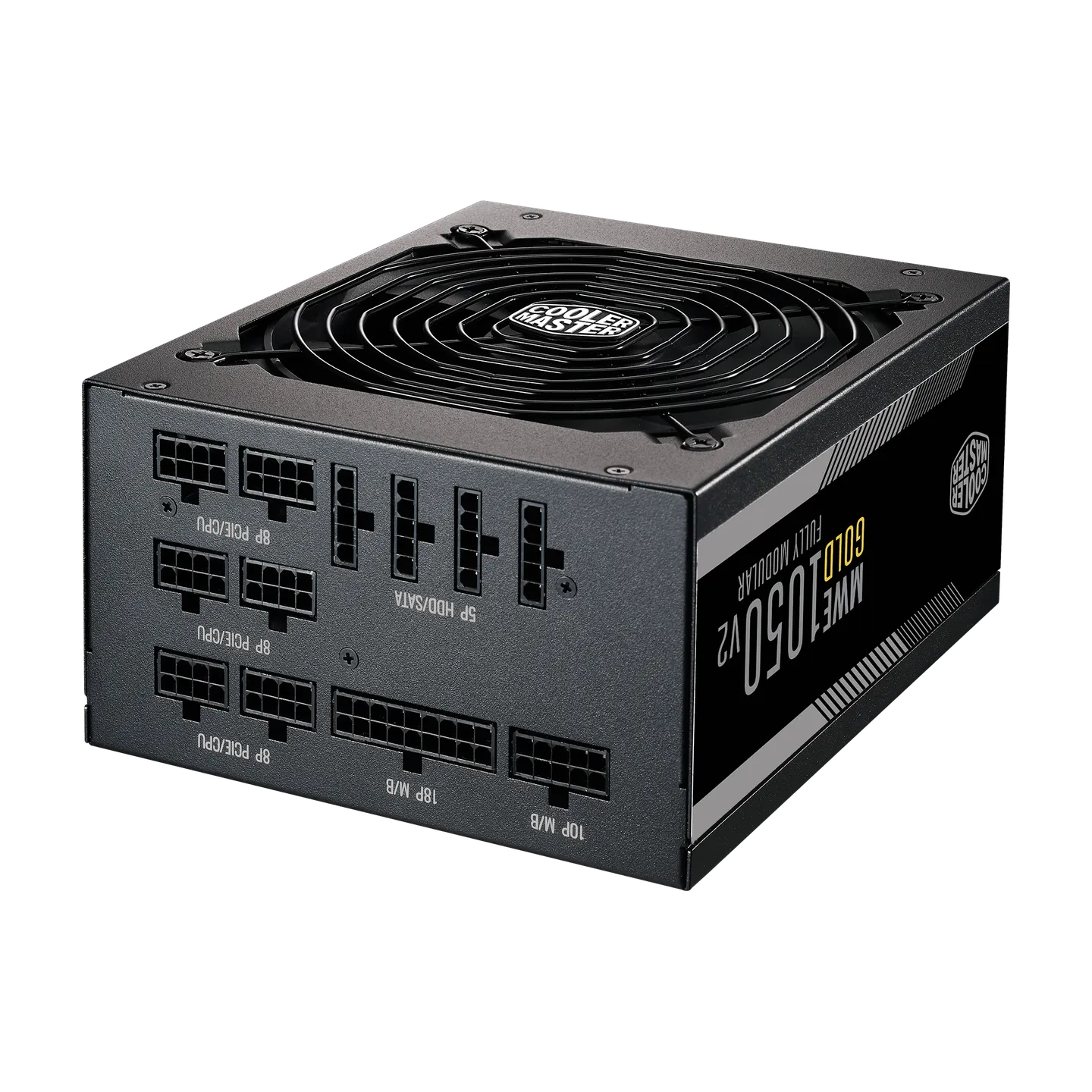

Connectors
– ATX 24 Pin	1
– EPS 4+4 Pin	1
– EPS 8 Pin	1
– PCI-e 6+2 Pin	6
– SATA	12
– Peripheral 4 Pin	4
Protections	UVP, OVP, OPP, OTP, SCP, OCP
Regulatory Certifications	TUV, cTUVus, CE, BSMI, FCC, CCC, EAC, RCM, KCC, CB, UKCA
Warranty	10 Years
Dimensions (L x W x H)	180 x 150 x 86 mm
