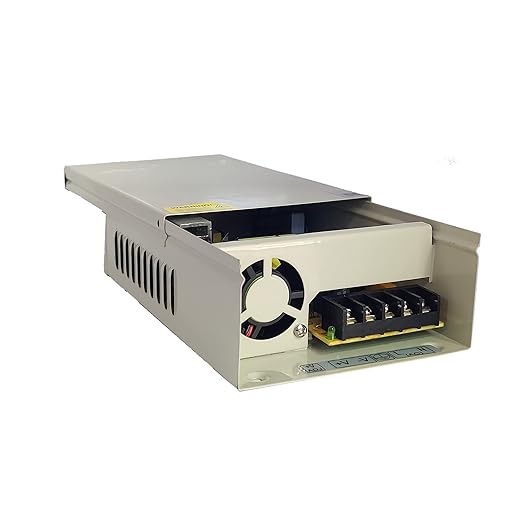

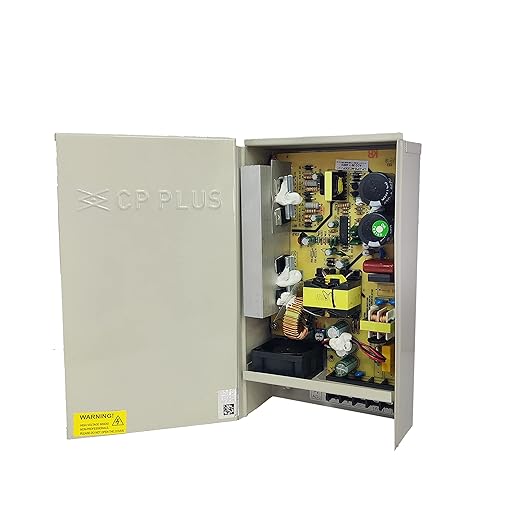

| Features | Specification |
|---|---|
| Product Name | CP PLUS 16CH SMPS 12V 20AMP |
| Model | CP-DPS-MD200P-12D |
| Series | Premium Series |
| Type | Metal Case Power Supply |
| Channels | 16 Channel |
| Input Voltage | 190–250V AC |
| Output Voltage | 12V DC |
| Current Range | 0–20A |
| Rated Power | 240W |
| Voltage Adjustment Range | 11.4V – 13.2V |
| Ripple & Noise (Max.) | 100mVp-p |
| Line Regulation | ±1.0% |
| Voltage Tolerance | ±2.0% |
| Setup Rise Time | 600ms, 30ms @ Full Load |
| Hold Up Time | 13ms @ Full Load |
| Load Regulation | ±5.0% |
| Efficiency | 84% (Typical) |
| Frequency Range | 47–63Hz |
| AC Current | 5A / 115VAC, 3A / 230VAC |
| Inrush Current | 20A / 115VAC, 40A / 230VAC |
| Leakage Current | <2mA / 240VAC |
| Protection | Overload / Over Voltage / Short Circuit |
| Isolation Resistance | 100M Ohms / 500VDC |
| Working Humidity | 20–90% RH (Non-condensing) |
| Working Temperature | -20°C to +40°C |
| Storage Temperature | -20°C to +85°C |
| Dimensions (L × W × H) | 196 × 114 × 55 mm |
| Housing | Metal Body |
