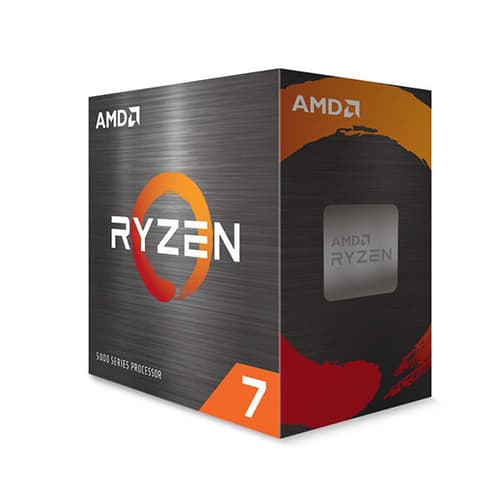

CPU AMD RYZEN 7 5700X

Features	Specifications
Platform	Desktop
Market Segment	Enthusiast Desktop
Product Family	AMD Ryzen™ Processors
Product Line	AMD Ryzen™ 7 Desktop Processors
Former Codename	“Vermeer”
Architecture	“Zen 3”
# of CPU Cores	8
Multithreading (SMT)	Yes
# of Threads	16
Max. Boost Clock	Up to 4.6GHz
Base Clock	3.4GHz
L1 Cache	512KB
L2 Cache	4MB
L3 Cache	32MB
Default TDP	65W
Processor Technology for CPU Cores	TSMC 7nm FinFET
Processor Technology for I/O Die	12nm (Globalfoundries)
CPU Compute Die (CCD) Size	74mm²
I/O Die (IOD) Size	125mm²
Unlocked for Overclocking	Yes
CPU Socket	AM4
Socket Count	1P
Supporting Chipsets	X570, X470, X370, B550, B450, B350, A520
CPU Boost Technology	Precision Boost 2
Instruction Set	x86-64
Supported Extensions	AES, AMD-V, AVX, AVX2, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64
Thermal Solution (PIB)	Not included
Max. Operating Temperature (Tjmax)	90°C
OS Support	Windows 11 (64-Bit), Windows 10 (64-Bit), RHEL x86 64-Bit, Ubuntu x86 64-Bit (may vary by manufacturer)
USB Type-C® Support	Yes
Native USB 3.2 Gen 2 (10Gbps) Ports	4
Native USB 3.2 Gen 1 (5Gbps) Ports	0
Native USB 2.0 (480Mbps) Ports	0
Native SATA Ports	2
PCI Express® Version	PCIe 4.0
Native PCIe® Lanes (Total/Usable)	24 / 20
Additional Usable PCIe Lanes from Motherboard	AMD X570: 16x Gen 4 / AMD X470: 2x Gen 3 + 8x Gen 2
NVMe Support	Boot, RAID0, RAID1, RAID10
System Memory Type	DDR4
Memory Channels	2
Max. Memory	128GB
System Memory Subtype	UDIMM
System Memory Specification	Up to 3200MHz
Max Memory Speed	2x1R DDR4-3200 / 2x2R DDR4-3200 / 4x1R DDR4-2933 / 4x2R DDR4-2667
ECC Support	Yes (Requires motherboard support)
Integrated Graphics	No
Graphics Model	Discrete Graphics Card Required
Supported Technologies	AMD StoreMI Technology, AMD Ryzen™ VR-Ready Premium
Warranty	3 Years
Note	Features, Price, Specifications are subject to change without notice

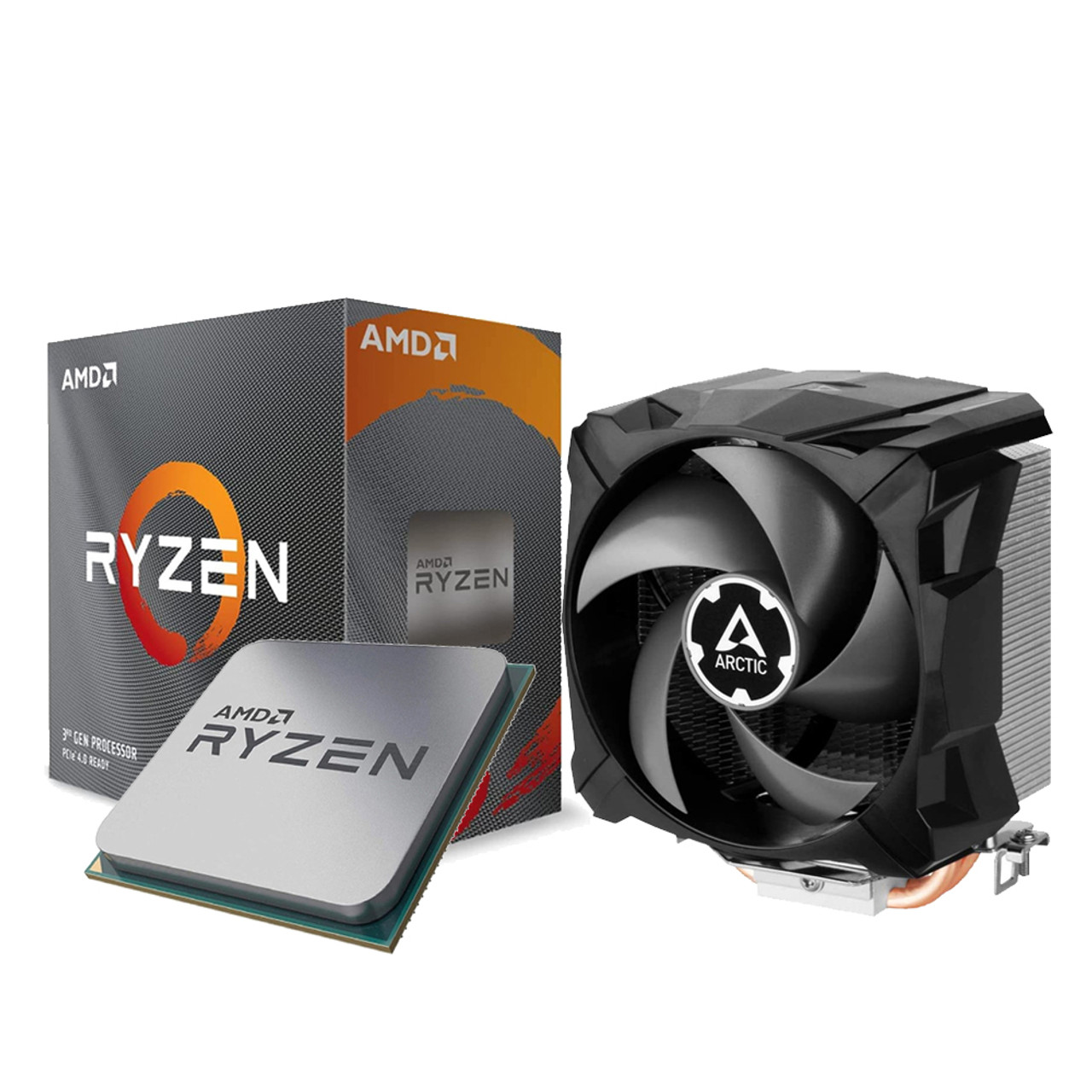

Compatible Components	Thermaltake SMPS, Arctic Liquid Freezer AIO Cooler
